How to Build a Crane

Cranes give you the power to lift any equipment you need on a construction site. This is due to how they are built. They are inherently configured to do tasks such as lifting incredibly heavy obects. If you are fascinated by how these cranes are built, you are in the right place. In this article, we will discuss how cranes are built.

Pre-Assembly Checklist

• • Review Assembly Instructions: Thoroughly review the manufacturer’s assembly instructions.
  • Inventory Check: Create a checklist of all necessary tools and materials based on the assembly instructions. This may include:
    •
    • • Bolts
      • Nuts
    • • Washers
    • • Hydraulic components
    • • Electrical wiring
    • • Lifting equipment
    • • Specialized tools

•

• • Quality Inspection: Ensure all components meet industry standards and are free from defects.

• • Specialized Tools: Ensure availability of specialized tools such as:
    • • Torque wrenches
    • • Hydraulic jacks
    • • Lifting slings
    • • Alignment devices

• • Safety Equipment: Provide appropriate personal protective equipment (PPE) including:
    • • Hard hats
    • • Safety glasses
    • • Gloves
    • • Harnesses

• • Accessibility: Ensure easy access for delivery trucks and adequate space for storage and maneuvering of heavy components.

• • Contingency Planning: Anticipate potential challenges and have spare parts readily available.

• • Communication: Foster clear communication between team members involved in procurement, logistics, and assembly.

• • Training and Familiarization: Ensure assembly workers are trained and familiar with the tools and materials used.

• • Documentation: Keep detailed records of all tools and materials used during assembly.

How To Assemble A Tower Crane

1. 1. Preparing the Site:
      • • Clear the area of debris, obstacles, or unnecessary structures.
      • • Establish a level foundation, may involve grading or laying down a stable platform.
      • • Obtain necessary permits and regulatory approvals.
        •
        • 2. Foundation Installation: Choose between different types of foundations including:
          • • Reinforced concrete footings
          • • Steel grillage foundation

1.

1. 1. Erecting the Tower Sections:
      • • Position and secure the base section onto the foundation.
      • • Lift subsequent sections into position and secure them together.

1. 1. Installing the Slewing Unit and Counterweights:
      • • Position and secure the slewing unit atop the tower crane.
      • • Add counterweights to the rear of the jib for stability.

1. 1. Mounting the Jib and Hook Assembly:
      • • Carefully position the jib onto the slewing unit and secure it in place.
      • • Install and connect the hook assembly to the jib.

1. 1. Testing and Commissioning: Conduct thorough testing and commissioning to validate performance and safety features.

1. 1. Operation and Maintenance: Schedule ongoing maintenance and monitor equipment health in real-time.



Do You Need a Crane to Build a Crane?

Does building a crane require a crane?

You may have thought that a crane was constructed by a larger crane, which was made by a taller crane, like an endless collection of nesting dolls, if you have ever passed a construction site and leaned your neck back to stare at the top of a crane.

But the majority of cranes construct themselves.

What does a crane contain?
A crane consists of a base, a cabin, and a long tower. In addition to a unique component known as the “climbing frame,” the tower is constructed from numerous identical parts that lock together. All the parts above it can be forced upward by this frame, which is somewhat broader than the rest of the tower. This leaves space for a new component to be inserted. Until the crane reaches the desired height, the procedure is again carried out.

Were you aware? With a maximum height of 6’6, cranes are the highest flying birds in the world.
The highest land-based crane in the world, known as “Big Carl,” is 250 meters high and has the capacity to lift 1,600 cars simultaneously.

Once finished, a ladder inside the tower is required to reach the cabin because it is far above the ground. Crane operators usually bring a bottle with them because it’s a long way down once they’re up there, especially if they need to use the restroom.

🏗️ Key Parts of a Crane

• Base/Foundation – A massive, reinforced concrete pad anchored with piles into bedrock to prevent tipping.
• Mast/Tower – Vertical steel lattice sections bolted together. Made from high-strength low-alloy steel (HSLA) for durability and rigidity.
• Turntable/Slewing Bearing – Mounted atop the tower, this allows the crane to rotate 360°.
• Jib & Counter‑Jib – Horizontal steel trusses extending forward (jib) for lifting, and backward (counter‑jib) holding heavy counterweights.
• Trolley & Hook Block – Moves along the jib to position loads, with cables and hoist mechanisms for lifting.
• Operator’s Cab, Winch & Motors – Houses controls and drives the hoist, trolley, and slewing functions.
• Counterweights – Often concrete or steel blocks on the counter-jib, balancing lifted loads to prevent tipping.

⚙️ Materials and Assembly

• High-strength low-alloy steel is the primary material, perfect for structural components due to its strength, weldability, and corrosion resistance.
• Steel is melted into ingots, rolled, cut into lattice sections, and welded or bolted together .
• Assembly of the mast is modular—steel sections are raised and bolted on-site using a mobile crane.
• The boom and counter-boom are added next, along with operator cabin, winch, slewing gear, trolley, and finally, counterweights.

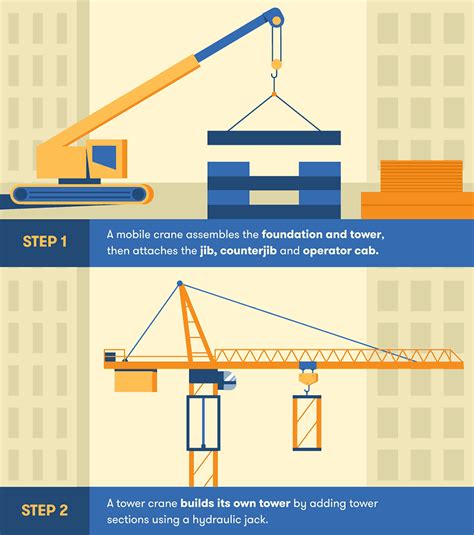

🌆 Self-Erecting Process

Once a certain height is reached, tower cranes “grow” using a climbing frame:

1. A climbing unit is inserted near the slewing head.
2. A hydraulic jack lifts the crane another mast section high enough to insert it.
3. The section is bolted in place.
4. After removing the climbing frame, the crane repeats this to add height.

Large cranes can keep climbing as the building rises—all powered by their own lifting mechanism.

🚛 How Cranes Perform Lifts

• Riggers attach the load to the hook.
• The operator uses joysticks to:
  • Hoist — lift or lower
  • Trolley travel — move load inwards or outwards
  • Slewing — rotate the crane
• The system handles heavy weights across large radii—some cranes reach 330 ft from the mast.

🛡️ Why They Don’t Tip

• Structural balance—counterweights and precise structural design keep moments in check .
• Safety limits—load capacities are set lower than tipping thresholds (e.g., 75 % tipping load for crawler cranes, 85 % for outriggered models).
• Sturdy foundation—proper anchoring and stable footing are essential .

🧩 Summary of Crane Construction

• Material: High-strength steel for mast, jib, structure; concrete/steel counterweights.
• Assembly: Modular build; mast sections installed via mobile crane, later increased via self-climbing frame.
• Operation: Uses slewing, hoisting, trolley; counterweights and foundation ensure stability.
• Purpose: Lift heavy loads skyward—critical in high-rise and large-scale projects.

This video shows how tower cranes erect themselves—climbing as the building grows—an engineering marvel you won’t want to miss!

Conclusion

If you have come thus far, then you have been armed with the necessary knowledge when it comes to building a crane. In the article, we discussed how to build a crane and answered the question: Do you need a crane to build a crane? You are welcome. Follow us for more!
